The effect of environment on the physical properties of core materials

Yoo-Sook Hwang; Kyoung-Kyu Choi; Sang-Jin Park

doi:10.5395/JKACD.2005.30.2.086

Articles

Page Path: HOME > Restor Dent Endod > Volume 30(2); 2005 > Article

Original Article The effect of environment on the physical properties of core materials: Yoo-Sook Hwang¹, Kyoung-Kyu Choi^1,2, Sang-Jin Park^1,2; 2005;30(2):-94.
DOI: https://doi.org/10.5395/JKACD.2005.30.2.086
Published online: March 31, 2005

¹Department of Conservative Dentistry, Division of Dentistry, Graduate School, Kyunghee University, Korea.

²Oral Biology Research Institute, College of Dentistry, Kyunghee University, Korea.

Corresponding author: Sang-Jin Park. Department of Conservative Dentistry, Division of Dentistry, Graduate school of KyungHee University, 1, Hoegi Dong, Dongdaemoon Gu, Seoul, Korea, 130-702. Tel: 82-2-958-9335, psangjin@khu.ac.kr

• Received: July 1, 2004 • Revised: August 18, 2004 • Accepted: October 9, 2004

296 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to measure the flexural strength and hardness of four core materials in 4 different medias and to evaluate the relationship between the physical properties.

For the flexural strength, the specimens were prepared from each of the following materials: Bisfil Core, Core Max, Fuji IX GP, Miracle Mix and randomly divided into four groups and stored at 37 degree C in the following medias: distilled water for 24 hours (DW/1), distilled water for 30 days (DW/30). 2% NaF for 30 days (NF/30), 0.02N lactic acid for 30 days (LA/30). After storage, the specimens were subjected to flexural strength testing and calculated to flexural modulus.

For hardness testing, specimens were prepared from four materials and storaged in the uniform way. After storage, the specimens were subjected to Vicker's hardness testing.

1. The flexural strength of Core Max were the highest, and the flexural strength of Miracle Mix were the lowest.

2. The hardness of Bisfil Core were the highest.

3. The hardness of Core Max were the highest.

4. The hardness of Miracle Mix were the lowest.

5. 2% NaF and 0.02N lactic acid negatively affected the flexural strength and hardness of four core materials.
Keywords: Mechanical properties; Core materials; Flexural strength; Hardness

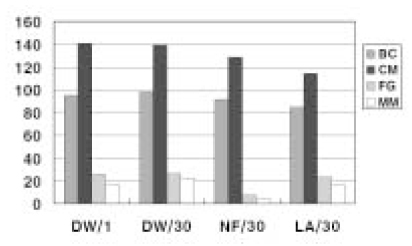

Figure 1

Flexural strengths (MPa ± SD) of four groups

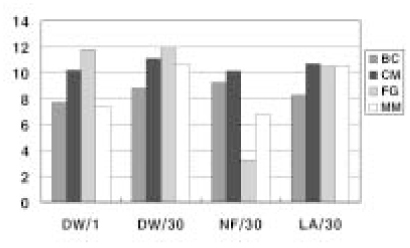

Figure 2

Flexural modulus (GPa ± SD) of four groups

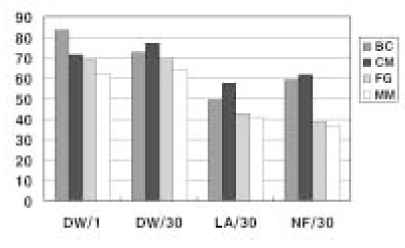

Figure 3

Vicker's Hardness Number (VHN) of four groups

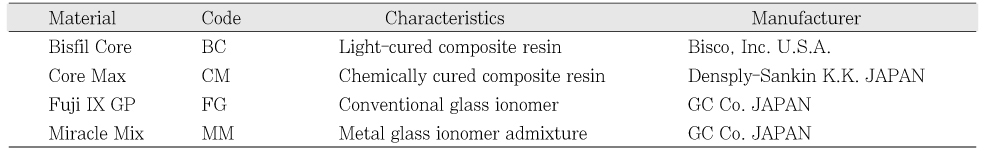

Table 1

Materials used in this study

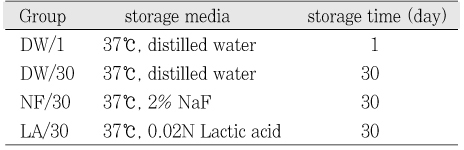

Table 2

Experimental groups and storage conditions

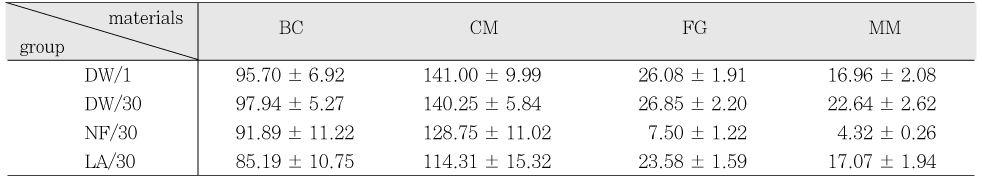

Table 3

Flexural strengths of four groups at different conditions (MPa ± SD)

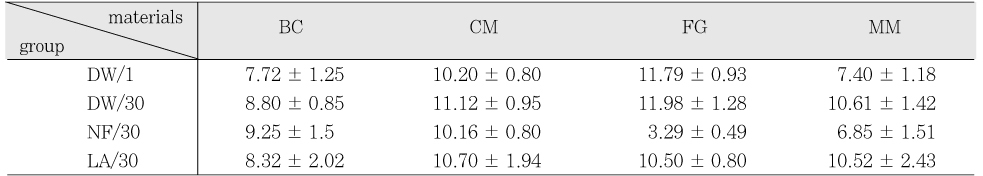

Table 4

Flexural Modulus of four groups at different conditions (GPa ± SD)

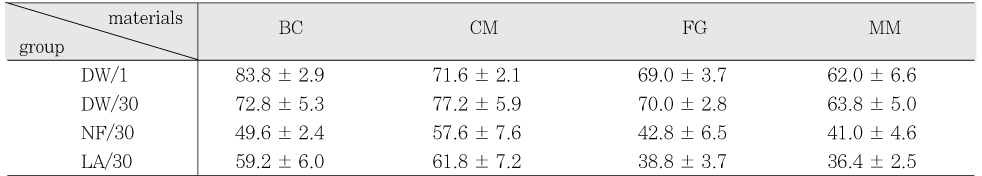

Table 5

Vicker's Hardness number (VHN) of four groups at different conditions

REFERENCES

1. Combe EC, Shaglouf A-MS, Watts DC, Wilson NHF. Mechanical properties of Direct core materials. Dent Mater. 1999;15: 158-165.PubMed
2. Cattani-Lorente MA, Dupuis V, Payan J, Moya F, Meyer JM. Effect of Water on the physical properties of resin-modified glass ionomer cements. Dent Mater. 1999;15: 71-78.Article PubMed
3. Saygili G, Mahmali SM. Comparative study of the physical properties of Core materials. Int J Periodontics Restorative Dent. 2002;22(4):355-363.PubMed
4. Yap AU, Cheang PH, Chay PL. Mechanical properties of two restorative Reinforced glass-ionomer cements. J Oral Rehabil. 2002;29: 682-688.Article PubMed
5. Bourke AW, Walls AW, McCabe JF. Light-activated glass polyalkenoate Cements; the setting reaction. J Dent. 1992;20(2):115-120.PubMed
6. Attar N, Onen A. Fluoride release and uptake characteristics of aesthetic restorative materials. J Oral Rehabil. 2002;29(8):791-798.Article PubMed
7. Wilson AD, Kent BE. A new translucent cement for dentistry. The glass Ionomer cement. Br Dent J. 1972;132: 133-135.Article PubMed PDF
8. Kerby RE, Knobloch L. Strength characteristics of glass-ionomer cements. Oper Dent. 1992;17: 170-174.PubMed
9. McLean JW. Glass-ionomer cements. Br Dent J. 1988;164: 293-300.Article PubMed PDF
10. MaLean JW, Gasser O. Glass-cemet cements. Quintessence Int. 1985;16(5):333-343.PubMed
11. McLean JW. Cermet cements. J Am Dent Assoc. 1990;120(1):43-47.Article PubMed
12. Kerby RE, Bleiholder RF. Physical properties of stainless-steel and Silver-reinforced glass-ionomer cements. J Dent Res. 1991;70(10):1358-1361.Article PubMed PDF
13. Phantumvanit P, Songpaisan Y, Pilot T, Frencken JE. Atraumatic restorative treatment(ART); a Three-year community field trial in Thailand-Survival of one-surface Restorations in the permanent dentition. J Public Health Dent. 1991;56: 141-145.Article
14. Levartovsky S, Kuyinu E, Georgescu M, Goldstein GR. A comparison of the Diametral tensile strength, the flexural strength, and the compressive Strength of two new core materials to a silver alloy-reinforced Glassionomer material. J Prosthet Dent. 1994;72(5):481-485.PubMed
15. Cohen BI, Volovich Y, Musikant BL, Deutsch AS. Comparison of the flexural strength of six reinforced restorative materials. Gen Dent. 2001;49(5):484-488.PubMed
16. Roulet JF, Walti C. Influence of oral fluid on composite resins and glass Ionomer cement. J Prosthet Dent. 1984;52: 182-186.PubMed
17. Yap AU, Tan SH, Wee SS, Lee CW, Lim EL, Zeng KY. Chemical degradation of composite restoratives. J Oral Rehabil. 2001;28(11):1015-1021.Article PubMed
18. Nicholson JW, Millar BJ, Czarnecka B, Limanowska-Shaw H. Storage of polyacid-modified resin composites in lactic acid solution. Dent Mater. 1999;15: 413-416.PubMed
19. Hotta M, Hirukawa H, Aono M. The effect of glaze on restorative glass-ionomer cements: evaluation of environmental durability in lactic acid solution. J Oral Rehabil. 1995;22(9):685-689.Article PubMed
20. Yaffe A, Zalkind M. The effect of topical application of fluorides on composite resin restorations. J Prosthet Dent. 1981;45: 59-62.PubMed
21. De Witte AM, De Maeyer EA, Verbeeck RM. Surface roughening of glass ionomer cements by neutral NaF solutions. Biomaterials. 2003;24(11):1995-2000.Article PubMed
22. Choi KK, Condon JR, Ferracane JL. The effects of Adhesive Thickness on Polymerization contraction stress of Composite. J Dent Res. 2000;79(3):812-817.Article PubMed PDF
23. Mitra SB, Kedrowski BL. Long-term mechanical properties of glass iomers. Dent Mater. 1994;10: 78-82.PubMed
24. Miyazaki M, Moore BK, Onose H. Effect of surface coatings on flexural properties of glass iononomers. Eur J Oral Sci. 1996;104: 600-604.PubMed
25. Kula K, McKinney JE, Kula TJ. Effects of daily topical fluoride gels on resin composite degradation and wear. Dent Mater. 1997;13: 305-311.Article PubMed
26. Bowen RJ, Cleek GW. A new series of X-ray-opaque reinforcing fillers for composite materials. J Dent Res. 1972;51: 177-182.Article PubMed PDF
27. Hadley PC, Billington RW, Pearson GJ, Williams JA. Effect of monovalent Ions in glass ionomer cements on their ineraction with sodium fluoride solution. Biomaterials. 2000;21(1):97-102.Article PubMed
28. Billington RW, Hadley PC, Towler MR, Pearson GJ, Williams JA. Effects of adding sodium and fluoride ions to glass ionomer on its interactions with sodium fluoride solution. Biomaterials. 2000;21(4):377-383.Article PubMed
29. Turssi CP, Hara AT, Serra MC, Rodrigues AL Jr. Effect of storage media upon the surface micromorphology of resin-based restorative materials. J Oral Rehabil. 2002;29(9):864-871.Article PubMed
30. Yap AU, Chew CL, Ong LF, Tech SH. Environmental damage and occlusal contact area wear of composite restoratives. J Oral Rehabil. 2002;29(1):87-97.Article PubMed
31. Mckinney J, Wu W. Chemical softening and wear of dental composites. J Dent Res. 1985;64(11):1326-1331.Article PubMed PDF
32. Yap AU, Teo JC, Teoh SH. Comparative wear resistance of reinforced glass ionomer restorative materials. Oper Dent. 2001;26(4):343-348.PubMed
33. Sarkar NK. Metal-matrix interface in reinforced glass ionomers. Dent Mater. 1999;15(6):421-425.Article PubMed

Tables & Figures
