Surface roughness of experimental composite resins using confocal laser scanning microscope

JH Bae; MA Lee; BH Cho

doi:10.5395/JKACD.2008.33.1.001

Articles

Page Path: HOME > Restor Dent Endod > Volume 33(1); 2008 > Article

Original Article Surface roughness of experimental composite resins using confocal laser scanning microscope: JH Bae¹, MA Lee², BH Cho^2,3; 2008;33(1):-8.
DOI: https://doi.org/10.5395/JKACD.2008.33.1.001
Published online: January 31, 2008

¹Department of Conservative Dentistry, Seoul National University Bundang Hospital, Korea.

²Department of Conservative Dentistry, School of Dentistry, Seoul National University, Korea.

³Dental Research Institute, Seoul National University, Korea.

Corresponding Author: Byeong-Hoon Cho. Department of Conservative Dentistry, School of Dentistry, Seoul National University, 28 Yeongeon-dong, Jongro-gu, Seoul, 110-749, Korea. Tel: 82-2-2072-3514, Fax: 82-2-764-3514, chobh@snu.ac.kr

• Received: September 18, 2007 • Revised: October 24, 2007 • Accepted: October 24, 2007

421 Views
2 Download

Full Article

Download PDF

Abstract
REFERENCES

Abstract

The purpose of this study was to evaluate the effect of a new resin monomer, filler size and polishing technique on the surface roughness of composite resin restorations using confocal laser scanning microscopy. By adding new methoxylated Bis-GMA (Bis-M-GMA, 2,2-bis[4-(2-methoxy-3-methacryloyloxy propoxy) phenyl] propane) having low viscosity, the content of TEGDMA might be decreased. Three experimental composite resins were made: EX1 (Bis-M-GMA/TEGDMA = 95/5 wt%, 40 mm nanofillers); EX2 (Bis-M-GMA/TEGDMA = 95/5 wt%, 20 mm nanofillers); EX3 (Bis-GMA/TEGDMA = 70/30 wt%, 40 mm nanofillers). Filtek Z250 was used as a reference.

Nine specimens (6 mm in diameter and 2 mm in thickness) for each experimental composite resin and Filtek Z250 were fabricated in a teflon mold and assigned to three groups. In Mylar strip group, specimens were left undisturbed. In Sof-lex group, specimens were ground with #1000 SiC paper and polished with Sof-lex discs. In DiaPolisher group, specimens were ground with #1000 SiC paper and polished with DiaPolisher polishing points. The Ra (Average roughness), Rq (Root mean square roughness), Rv (Valley roughness), Rp (Peak roughness), Rc (2D roughness) and Sc (3D roughness) values were determined using confocal laser scanning microscopy. The data were statistically analyzed by Two-way ANOVA and Tukey multiple comparisons test (p = 0.05).

The type of composite resin and polishing technique significantly affected the surface roughness of the composite resin restorations (p < 0.001). EX3 showed the smoothest surface compared to the other composite resins (p < 0.05). Mylar strip resulted in smoother surface than other polishing techniques (p < 0.05).

Bis-M-GMA, a new resin monomer having low viscosity, might reduce the amount of diluent, but showed adverse effect on the surface roughness of composite resin restorations.
Keywords: Bis-M-GMA; confocal laser scanning microscopy; filler size; new resin monomer; surface roughness

Figure 3

Cross-sectional profile obtained from the intersection line in Figure 1 & 2.

Figure 1

Confocal laser scanning micrography of EX3 Sof-lex group (× 200).

Download Figure

Figure 2

3D image of EX3 Sof-lex group obtained using confocal laser scanning micrography (× 200).

Download Figure

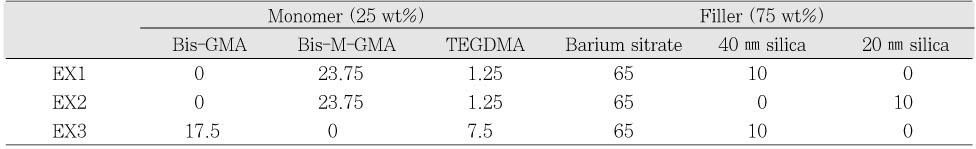

Table 1

The composition of experimental composite resins (Unit: wt%)

The numbers were weight percentage of the composition within each experimental resin.

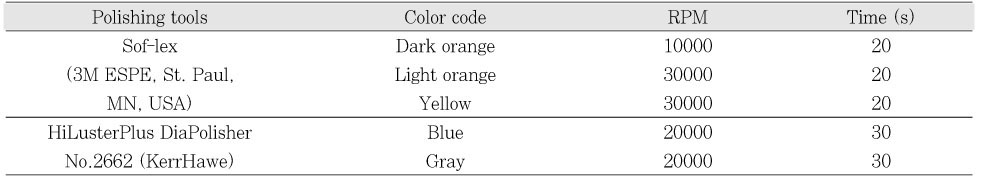

Table 2

Polishing tools and their polishing protocols

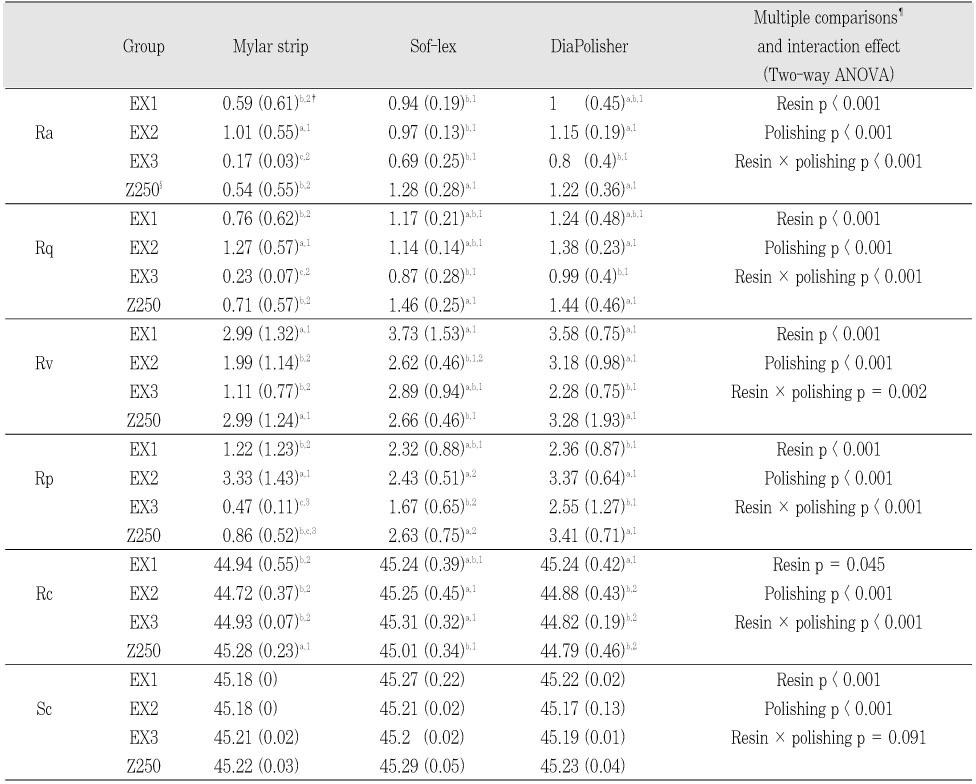

Table 3

The Ra, Rq, Rv, Rp, Rc, and Sc values of experimental composite resins according to the polishing techniques

† The numbers in parentheses are the standard deviations. (n = 21)

¶ Means within same columns with different superscript letters in each parameter are significantly different (p < 0.05), and means within same rows with different superscript numbers in each parameter are significantly different (p < 0.05).

§ The values of Filtek Z250 were also measured as a reference.

This work was supported by a grant from the Ministry of Health and Welfare of Korea (Grant No. 03-PJ1-PG1-CH09-0001).

Figure 1

Confocal laser scanning micrography of EX3 Sof-lex group (× 200).

Figure 2

3D image of EX3 Sof-lex group obtained using confocal laser scanning micrography (× 200).

Figure 3

Cross-sectional profile obtained from the intersection line in Figure 1 & 2.

Table 1

The composition of experimental composite resins (Unit: wt%)

The numbers were weight percentage of the composition within each experimental resin.

Table 2

Polishing tools and their polishing protocols

Table 3

The Ra, Rq, Rv, Rp, Rc, and Sc values of experimental composite resins according to the polishing techniques

† The numbers in parentheses are the standard deviations. (n = 21)

§ The values of Filtek Z250 were also measured as a reference.
