Abstract
-
Objectives The purpose of this study was to compare the maximum screw-in forces generated during the movement of various Nickel-Titanium (NiTi) file systems.
-
Materials and Methods Forty simulated canals in resin blocks were randomly divided into 4 groups for the following instruments: Mtwo size 25/0.07 (MTW, VDW GmbH), Reciproc R25 (RPR, VDW GmbH), ProTaper Universal F2 (PTU, Dentsply Maillefer), and ProTaper Next X2 (PTN, Dentsply Maillefer, n = 10). All the artificial canals were prepared to obtain a standardized lumen by using ProTaper Universal F1. Screw-in forces were measured using a custom-made experimental device (AEndoS-k, DMJ system) during instrumentation with each NiTi file system using the designated movement. The rotation speed was set at 350 rpm with an automatic 4 mm pecking motion at a speed of 1 mm/sec. The pecking depth was increased by 1 mm for each pecking motion until the file reach the working length. Forces were recorded during file movement, and the maximum force was extracted from the data. Maximum screw-in forces were analyzed by one-way ANOVA and Tukey's post hoc comparison at a significance level of 95%.
-
Results Reciproc and ProTaper Universal files generated the highest maximum screw-in forces among all the instruments while M-two and ProTaper Next showed the lowest (p < 0.05).
-
Conclusions Geometrical differences rather than shaping motion and alloys may affect the screw-in force during canal instrumentation. To reduce screw-in forces, the use of NiTi files with smaller cross-sectional area for higher flexibility is recommended.
Introduction
Motor-driven nickel-titanium (NiTi) endodontic instruments are thought to shape root canals more effectively than stainless steel files. In comparison to conventional stainless steel files, it has been shown that NiTi instruments are two or three times more flexible and have more torsional fracture resistance.1 Using NiTi instruments during root canal shaping may even allow better preservation of the root canal anatomy.2,3
Mechanical performance of an endodontic file is mainly governed by its geometric configuration,4,5,6 which not only affects the chance or risk of separation but also leads to the generation of different amounts of stress on the root canal wall during shaping.6,7,8,9,10 During rotary preparation, contact between the instrument and dentin creates internal stresses in the instrument and a reaction torque in the root dentin. The cutting edges take the form of a spiral in the longitudinal aspect. If they are sharp and aggressive, they dig into the dentin producing even greater stresses in both the instrument and root dentin. While this force is essential for achieving the cut and removal of dentin, the spiraling configuration can cause an apical driving force (screw-in effect) that is a tactile sensation of the rotary file being pulled into the canal in an apical direction. If not resisted deliberately, this may result in the inadvertent overextension of the instrument beyond the apical foramen.11 Accidental over-preparation of the apical foramen may significantly weaken the roots and create apical root cracks.12 Consequently, clinicians need to hold the handpiece firmly or adopt a brushing action to prevent the instrument from pulling into the canal suddenly.
This screw-in phenomenon was reported to occur more frequently when using a rotary instrument with active cutting edges.11,13 This might be explained by the sharp cutting edge engaging and guiding the file into the canal along the dentin wall. It may cause over-instrumentation beyond the apical foramen, and consequently a bigger apical foramen than the actual file tip size (diameter of D0) at working length. In addition, it may lead to a 'taper lock' effect and the instantaneous increase of torsional stress on the file, which may increase the risk of instrument fracture.14 Undoubtedly, a separated file and/or over-instrumentation of the canal may reduce the success rate of endodontic treatment.15
Various NiTi rotary instrument systems made of different alloys with characterized geometric shapes and/or different kinematic movements are available. In terms of geometry, a reduced contact with the dentinal wall by off-centered cross-sectional design, which is incorporated in the instruments of ProTaper Next (Dentsply Maillefer, Ballaigues, Switzerland) and Revo-S (Micro-Mega, Besançon, France), might reduce screw-in forces.16 Screw-in forces is clinically important for preventing unintended over-instrumentation and reducing the risk of apical crack formation. Therefore, this study compared the screw-in forces of various instruments during their movements.
Materials and Methods
In this study, four kinds of instruments made of different alloys and with different kinematic movements were used (Figure 1): Mtwo size 25/0.07 taper (MTW, VDW GmbH, Munich, Germany), Reciproc R25 (RPR, VDW GmbH), ProTaper Universal F2 (PTU, Dentsply Maillefer) and ProTaper Next X2 (PTN, Dentsply Maillefer). MTW, PTU, and PTN are used in a continuous rotation motion while RPR is moved in a reciprocating motion. PTU and MTW are made using conventional NiTi alloys, M-wire was utilized to manufacture PTN and RPR. All the instruments have a tip size of ISO #25 but with different apical taper of a few millimeters: PTU and RPR have an 8% apical taper, MTW has a 7% apical taper, and PTN has a 6% apical taper. Ten files were used for each instrument group.
Forty simulated canals in resin blocks (Dentsply Maillefer) were used in this study (n = 10). The simulated canal had a curvature of 30° according to the Schneider method,17 and working length of 16 mm by 0.5 mm short from the canal exit under a stereomicroscope (Leica S6D, Leica Microsystems, Wetzlar, Germany). Before shaping with the designated files, the canals in resin blocks were instrumented to form a pre-enlarged canal lumen using NiTi instruments in the following sequence: glide path preparation with ProGlider (Dentsply Maillefer), pre-enlarging with ProTaper Universal S1, S2, and F1. During the instrumentation, canals were irrigated thoroughly, and the patency was checked using a size 10 K-file (M access, Dentsply Maillefer).
A custom-made device (AEndoS-k, DMJ system, Busan, Korea) was used to measure and record screw-in forces during file movement (Figure 2). When the blade of instrument is lodged into the root canal, the simulated canal was lifted up in the opposite direction against that of file's active direction. At this moment, coronal movement of the simulated canal causes the tension in compression/tension sensor. This tension was referred as screw-in effect, and the force was measured. Each simulated canal in pre-enlarged resin block and designated file were connected to the device, and the file was moved in continuous rotation or reciprocating motion automatically (Figure 2). The rotation speed was set at 350 rpm for all groups and the reciprocating angles were set as 170 degrees counterclockwise and 50 degrees clockwise for the RPR group. The reciprocating angle was set depending on previous study.18 The files were automatically moved to working length (16 mm) with a pecking motion of 4 mm distance and the crosshead speed was set at 1 mm/sec. The pecking depth was increased 1 mm for every one pecking motion until the file reach the working length. The forces were recorded during the file movement, and the maximum force was extracted from the data. Prior to automatic instrumentation of continuous pecking motions, the canal was filled with distilled water for lubrication.
The maximum screw-in forces during the instrumentation procedures were statistically analyzed (SPSS ver. 22, IBM Corp., Somers, NY, USA) by using one-way analysis of variance and Tukey's post hoc comparison test with a significance level of 95%.
Results
The changes in screw-in forces during the instrumentation procedure are presented in Figure 3 as a representative chart. The forces generated during the pecking motion until the file reaches the working length are presented. The deepest depth in force with negative value indicates the maximum screw-in forces.
The RPR and PTU files had the higher maximum screw-in force among the tested instruments (p < 0.05). PTN showed the lowest screw-in force as well as the MTW file (p < 0.05, Table 1).
Discussion
Mechanical performance of endodontic file systems depends mainly on their geometric characteristics and metallurgical properties.4,5,6,10,19 Previous studies have focused on file designs to understand the instruments' longevity and fracture resistances.8,19,20,21 These factors may also affect the forces that are applied to root dentin during shaping.9,10,22,23 During root canal preparation, a canal is shaped by the contact between the instrument and dentin. These contacts create reaction forces in both the root canal wall and the instrument.4,10,22 These reaction forces are essential for root canal preparation that cuts the infected dentin and shapes the canal for a lumen to clean and obturate efficiently. However, the associated apical driving screw-in forces can result in an instantaneous loss of instrument control and cause the instrument to pass beyond the working length or apical foramen.4,11 This may significantly weaken the roots and create apical root cracks.12 To date, few studies have reported the screw-in effect despite the fact that the screw-in tendency may be harmful to root canal preparation.13 Therefore, the aim of this study was to compare the screw-in forces of various instruments during their movements.
Various instrument systems (MTW, RPR, PTU, and PTN) with different kinematics, alloys, and shapes were compared with regard to the generation of screw-in forces. PTU is a popular instrument made of conventional NiTi alloy and characterized as an active cutting instrument with a convex triangular cross-section (for the size F2). PTN is a recently introduced system made of M-wire with a unique off-centered rectangular cross-section intended to reduce the contact points with the root canal. RPR is one of the representative reciprocating systems also made of M-wire. RPR has an S-shaped cross-section and two contacts points with the canal wall which is quite similar with the MTW.
We used simulated resin root canals. Although extracted teeth could be used to simulate clinical condition, they have a critical drawback of anatomic deviation. The screw-in forces and reaction torque were highly affected by canal curvatures, which cannot be standardized in natural teeth.23 There was also a corresponding increase in the screw-in forces with increased root canal curvature (and/or reduced radius) regardless of the cross-sectional configuration and number of threads on the instrument. Under non-standard conditions, the contact point between the canal and instrument cannot be controlled and the results may be distorted.
In the present study, PTU and RPR had the highest screw-in forces. PTU has triangular cross-sectional area that cuts dentin with three-point contact symmetrically, and has larger taper (0.08 taper for F2) compared with PTX (0.06 taper for X2) and MTW (0.07 taper apically). PTU is also made with conventional NiTi alloy. These geometric characteristics increase its rigidity and produce a higher screw-in effect. In contrast, PTN and MTW produced the lowest screw-in force than other two file systems tested. It may be resulted from the smaller taper of PTN and MTW (0.06 and 0.07 taper, respectively) compared with the other instruments (0.08 apical taper for PTU and RPR). Another explanation may be the characteristics of the M-wire, which is more flexible than the conventional NiTi alloy.24,25 However, only PTN showed less screw-in forces, while RPR showed higher screw-in forces. Therefore, the geometrical factors seemed to be the dominant factor.
A previous study of finite element analysis tested two variables, the cross-section and pitch length of the instrument. This analysis showed that the superior flexibility and smaller diameter of the instrument resulted in lower screw-in force.23 Versluis et al.8 also reported that the magnitude of the screw-in effect and reaction force on the canal wall were also related to the flexural rigidity of the cross-sectional configuration of the instrument. Slender rectangular cross-sectional instruments (similar with the PTN) which has smaller center-core had greater flexibility and lower screw-in effect than triangular and square cross-sectional instruments.6,8,23,26 Reciprocating movements may reduce the screw-in effect because a momentary clockwise rotation (opposite direction to active direction) may relieve the stress when the instrument is trapped in dentin during counterclockwise rotation. However, in the present study, RPR showed similar screw-in forces with the PTU (continuous rotating) and higher forces than the PTN and MTW. Therefore, through this study, the difference in kinematic movement was not sufficient to explain this effect.
Recently, manufacturers have developed and introduced various new file systems made of new alloys through heat treatments. Instruments with advanced flexibility through heat treatment may reduce transportation with a reduced reaction force; thus, there may be a reduced risk of cracking or fracturing apical dentin which may jeopardize the prognosis of endodontically treated teeth.8,10,27 Further study using various instrument systems made of heat treated alloys as well as variety of geometric factors especially in the longitudinal aspect such as pitch are needed.5,6,8,10,23
Although the screw-in tendency is harmful to root canal preparation, to date, few studies have reported the screw-in effect.13 The present study reports practical information for currently used instruments with different kinematics and alloys as well as geometrical characteristics. Over-instrumentation beyond the apical foramen may lead to reduced success rates for endodontically treated teeth.15 When a screw-in force is generated, torsional stresses on the instrument are also increased instantaneously and thus the risk of instrument fracture may increase.11 Clinicians should be aware that geometric characteristics may make some instruments more prone to high screw-in forces.
Conclusions
Under the limitations of this study, varying range of screw-in forces was generated according to the instruments' geometries and sizes. Clinicians need to hold the hand-piece firmly to prevent the instrument from being pulled inside the canal.
Acknowledgement
This work was supported by a 2 Year Research Grant of Pusan National University.
- 1. Walia HM, Brantley WA, Gerstein H. An initial investigation of the bending and torsional properties of Nitinol root canal files. J Endod 1988;14:346-351.ArticlePubMed
- 2. Peters OA. Current challenges and concepts in the preparation of root canal systems: a review. J Endod 2004;30:559-567.ArticlePubMed
- 3. Sonntag D, Guntermann A, Kim SK, Stachniss V. Root canal shaping with manual stainless steel files and rotary Ni-Ti files performed by students. Int Endod J 2003;36:246-255.ArticlePubMedPDF
- 4. Kim HC, Cheung GS, Lee CJ, Kim BM, Park JK, Kang SI. Comparison of forces generated during root canal shaping and residual stresses of three nickel-titanium rotary files by using a three-dimensional finite-element analysis. J Endod 2008;34:743-747.ArticlePubMed
- 5. Kim TO, Cheung GS, Lee JM, Kim BM, Hur B, Kim HC. Stress distribution of three NiTi rotary files under bending and torsional conditions using a mathematic analysis. Int Endod J 2009;42:14-21.ArticlePubMed
- 6. Kim HC, Kim HJ, Lee CJ, Kim BM, Park JK, Versluis A. Mechanical response of nickel-titanium instruments with different cross-sectional designs during shaping of simulated curved canals. Int Endod J 2009;42:593-602.ArticlePubMed
- 7. Zhang EW, Cheung GS, Zheng YF. Influence of cross-sectional design and dimension on mechanical behavior of nickel-titanium instruments under torsion and bending: a numerical analysis. J Endod 2010;36:1394-1398.ArticlePubMed
- 8. Versluis A, Kim HC, Lee W, Kim BM, Lee CJ. Flexural stiffness and stresses in nickel-titanium rotary files for various pitch and cross-sectional geometries. J Endod 2012;38:1399-1403.ArticlePubMed
- 9. Lam PP, Palamara JE, Messer HH. Fracture strength of tooth roots following canal preparation by hand and rotary instrumentation. J Endod 2005;31:529-532.ArticlePubMed
- 10. Kim HC, Lee MH, Yum J, Versluis A, Lee CJ, Kim BM. Potential relationship between design of nickel-titanium rotary instruments and vertical root fracture. J Endod 2010;36:1195-1199.ArticlePubMed
- 11. Ha JH, Park SS. Influence of glide path on the screw-in effect and torque of nickel-titanium rotary files in simulated resin root canals. Restor Dent Endod 2012;37:215-219.ArticlePubMedPMC
- 12. Adorno CG, Yoshioka T, Suda H. Crack initiation on the apical root surface caused by three different nickel-titanium rotary files at different working lengths. J Endod 2011;37:522-525.ArticlePubMed
- 13. Diemer F, Calas P. Effect of pitch length on the behavior of rotary triple helix root canal instruments. J Endod 2004;30:716-718.ArticlePubMed
- 14. Park H. A comparison of Greater Taper files, ProFiles, and stainless steel files to shape curved root canals. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2001;91:715-718.ArticlePubMed
- 15. Sjogren U, Hagglund B, Sundqvist G, Wing K. Factors affecting the long-term results of endodontic treatment. J Endod 1990;16:498-504.ArticlePubMed
- 16. Dentsply maillefer: WAVEONE. updated 2016 Aug 08]. Available from: http://www.dentsplymaillefer.com/product-category/glide-path-shaping/waveone.
- 17. Schneider SW. A comparison of canal preparations in straight and curved root canals. Oral Surg Oral Med Oral Pathol 1971;32:271-275.ArticlePubMed
- 18. Kim JW, Ha JH, Cheung GS, Versluis A, Kwak SW, Kim HC. Safety of the factory preset rotation angle of reciprocating instruments. J Endod 2014;40:1671-1675.ArticlePubMed
- 19. Shen Y, Zhou HM, Zheng YF, Peng B, Haapasalo M. Current challenges and concepts of the thermomechanical treatment of nickel-titanium instruments. J Endod 2013;39:163-172.ArticlePubMed
- 20. Yum J, Cheung GS, Park JK, Hur B, Kim HC. Torsional strength and toughness of nickel-titanium rotary files. J Endod 2011;37:382-386.ArticlePubMed
- 21. Gambarini G, Plotino G, Grande NM, Al-Sudani D, De Luca M, Testarelli L. Mechanical properties of nickel-titanium rotary instruments produced with a new manufacturing technique. Int Endod J 2011;44:337-341.ArticlePubMed
- 22. Kim HC, Sung SY, Ha JH, Solomonov M, Lee JM, Lee CJ, Kim BM. Stress generation during self-adjusting file movement: minimally invasive instrumentation. J Endod 2013;39:1572-1575.ArticlePubMed
- 23. Ha JH, Cheung GS, Versluis A, Lee CJ, Kwak SW, Kim HC. 'Screw-in' tendency of rotary nickel-titanium files due to design geometry. Int Endod J 2015;48:666-672.ArticlePubMed
- 24. Elnaghy AM, Elsaka SE. Assessment of the mechanical properties of ProTaper Next nickel-titanium rotary files. J Endod 2014;40:1830-1834.ArticlePubMed
- 25. Gao Y, Gutmann JL, Wilkinson K, Maxwell R, Ammon D. Evaluation of the impact of raw materials on the fatigue and mechanical properties of ProFile Vortex rotary instruments. J Endod 2012;38:398-401.ArticlePubMed
- 26. Baek SH, Lee CJ, Versluis A, Kim BM, Lee W, Kim HC. Comparison of torsional stiffness of nickel-titanium rotary files with different geometric characteristics. J Endod 2011;37:1283-1286.ArticlePubMed
- 27. Lee MH, Versluis A, Kim BM, Lee CJ, Hur B, Kim HC. Correlation between experimental cyclic fatigue resistance and numerical stress analysis for nickel-titanium rotary files. J Endod 2011;37:1152-1157.ArticlePubMed
REFERENCES
Figure 1

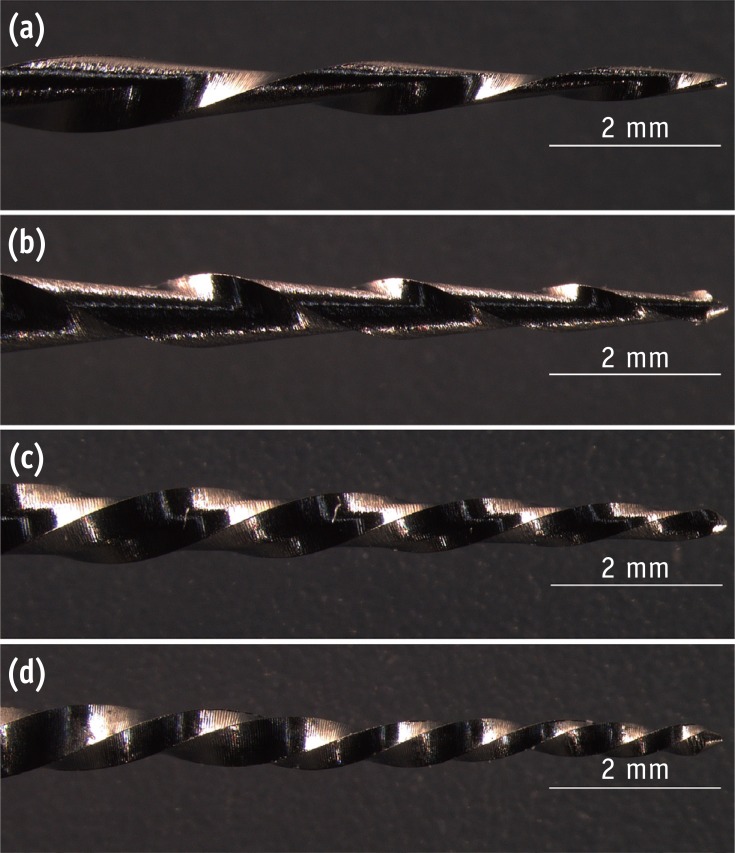

Longitudinal geometries of the instruments showing helical angle and pitch length. (a) Mtwo size 25/0.07; (b) Reciproc R25; (c) ProTaper Universal F2; (d) ProTaper Next X2.
Figure 2

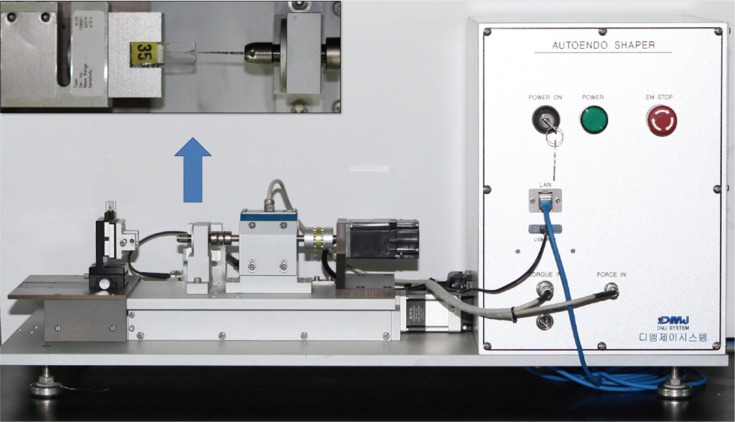

A custom-made test device (AEndoS-k, DMJ system, Busan, Korea). Simulated canal, force sensor and engine-driven motor unit are shown in box.
Figure 3

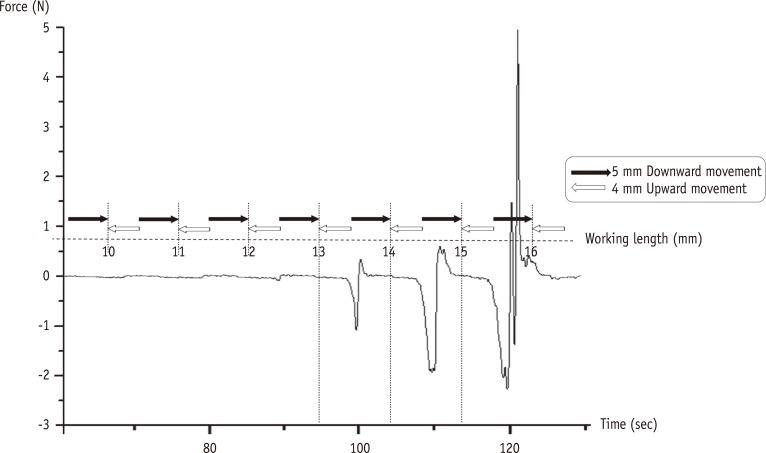

Representative chart of screw-in forces during instrumentation using Reciproc R25. Negative values indicate the screw-in forces and the deepest depth in force with negative value indicates the maximum screw-in forces. Repeating 5 mm downward (black arrow) and 4 mm upward (white arrow) movement, the files approach the working length (16 mm) as the laps of time.
Tables & Figures
REFERENCES
Citations
Citations to this article as recorded by
- Restoration of teeth lacking complete ferrules using cast precious metal alloy post-and-cores and knife-edged crowns: A retrospective clinical study
Fangyue Xiang, Keying Shi, Haoyang Hua, Jing Zhao, Yuanna Zheng
The Journal of Prosthetic Dentistry.2025; 134(5): 1729. CrossRef - Comparison of mechanical properties and shaping performance of ProGlider and ProTaper ultimate slider
Jeyi Song, Ji-Hyun Jang, Seok Woo Chang, Shin Hye Chung, Soram Oh
BMC Oral Health.2025;[Epub] CrossRef - Thermal Treatment Prevents Effects of Downward Loads on the Screw-In Force Generation and Canal-Centering Ability of Nickel–Titanium Rotary Instruments
Keiichiro Maki, Arata Ebihara, Yanshan Luo, Yuka Kasuga, Hayate Unno, Satoshi Omori, Shunsuke Kimura, Takashi Okiji
Materials.2025; 18(15): 3610. CrossRef - Radial Lands and Alternating Cutting Edges Contribute to Reduced Screw-in and Torque in Curved Root Canals - An In Vitro Study
Greta Heimberg, Sebastian Bürklein, Edgar Schäfer, Thomas Gerhard Wolf, David Donnermeyer
Journal of Endodontics.2025;[Epub] CrossRef - Screw-in force, torque generation, and performance of glide-path files with three rotation kinetics
Jee-Yeon Woo, Ji-Hyun Jang, Seok Woo Chang, Soram Oh
Odontology.2024; 112(3): 761. CrossRef - Comparative evaluation of stress distribution against the root canal wall at three different levels using novel NiTi rotary files – A finite element analysis
Rimjhim Singh, Sandeep Dubey, Palak Singh, Praveen Singh Samant, Suparna Ganguly Saha
Journal of Conservative Dentistry and Endodontics.2024; 27(1): 62. CrossRef - Effect of Periodic Changes in Rotation Speed on Torsional Stress and Screw-in Force by Alternative Rotation Technique
Jung-Hong Ha, Hyo-Jin Jo, Sang Won Kwak, Asgeir Sigurdsson, Hyeon-Cheol Kim
Journal of Endodontics.2023; 49(1): 77. CrossRef - A Comparative Evaluation of the Apically Extruded Debris from Root Canals Prepared by R-Motion NiTi File System
Farah B. Al-Saffar, Hikmet A. Al-Gharrawi, Luca Testarelli
International Journal of Dentistry.2023; 2023: 1. CrossRef - Effect of Rotational Modes on Torque/Force Generation and Canal Centering Ability during Rotary Root Canal Instrumentation with Differently Heat-Treated Nickel–Titanium Instruments
Satoshi Omori, Arata Ebihara, Keiko Hirano, Yuka Kasuga, Hayate Unno, Taro Nakatsukasa, Shunsuke Kimura, Keiichiro Maki, Takao Hanawa, Takashi Okiji
Materials.2022; 15(19): 6850. CrossRef - Effect of Core Mass and Alloy on Cyclic Fatigue Resistance of Different Nickel-Titanium Endodontic Instruments in Matching Artificial Canals
Sebastian Bürklein, Lennart Zupanc, David Donnermeyer, Karsten Tegtmeyer, Edgar Schäfer
Materials.2021; 14(19): 5734. CrossRef - Comparison of Torque, Screw-in Force, and Shaping Ability of Glide Path Instruments in Continuous Rotation and Optimum Glide Path Motion
Pyae Hein Htun, Arata Ebihara, Keiichiro Maki, Shunsuke Kimura, Miki Nishijo, Moe Sandar Kyaw, Takashi Okiji
Journal of Endodontics.2021; 47(1): 94. CrossRef - Analysis of Torque and Force Induced by Rotary Nickel-Titanium Instruments during Root Canal Preparation: A Systematic Review
Myint Thu, Arata Ebihara, Sherif Adel, Takashi Okiji
Applied Sciences.2021; 11(7): 3079. CrossRef - Influence of rotational speed on torque/force generation and shaping ability during root canal instrumentation of extracted teeth with continuous rotation and optimum torque reverse motion
M. S. Kyaw, A. Ebihara, Y. Kasuga, K. Maki, S. Kimura, P. H. Htun, T. Nakatsukasa, T. Okiji
International Endodontic Journal.2021; 54(9): 1614. CrossRef - Effect of Optimum Torque Reverse Motion on Torque and Force Generation during Root Canal Instrumentation with Crown-down and Single-length Techniques
Shunsuke Kimura, Arata Ebihara, Keiichiro Maki, Miki Nishijo, Daisuke Tokita, Takashi Okiji
Journal of Endodontics.2020; 46(2): 232. CrossRef - Comparative analysis of torque and apical force to assess the cutting behaviour of ProTaper Next and ProTaper Universal endodontic instruments
Gustavo de Cristofaro Almeida, Diego Pinheiro Aun, Pedro Damas Resende, Isabella Faria da Cunha Peixoto, Ana Cecília Diniz Viana, Vicente Tadeu Lopes Buono, Maria Guiomar de Azevedo Bahia
Australian Endodontic Journal.2020; 46(1): 52. CrossRef - Enhanced root canal-centering ability and reduced screw-in force generation of reciprocating nickel-titanium instruments with a post-machining thermal treatment
Keiichiro MAKI, Arata EBIHARA, Shunsuke KIMURA, Miki NISHIJO, Daisuke TOKITA, Kana MIYARA, Takashi OKIJI
Dental Materials Journal.2020; 39(2): 251. CrossRef - Ex-Vivo Comparison of Torsional Stress on Nickel–Titanium Instruments Activated by Continuous Rotation or Adaptive Motion
Joo Yeong Lee, Sang Won Kwak, Jung-Hong Ha, Hyeon-Cheol Kim
Materials.2020; 13(8): 1900. CrossRef - Evaluation of stress distribution in nickel-titanium rotary instruments with different geometrical designs subjected to bending and torsional load: a finite element study
Manar Galal, Tamer M. Hamdy
Bulletin of the National Research Centre.2020;[Epub] CrossRef - Assessment of mechanical properties of WaveOne Gold Primary reciprocating instruments
Tong FANGLI, Keiichiro MAKI, Shunsuke KIMURA, Miki NISHIJO, Daisuke TOKITA, Arata EBIHARA, Takashi OKIJI
Dental Materials Journal.2019; 38(3): 490. CrossRef - Comparison of Screw-In Forces during Movement of Endodontic Files with Different Geometries, Alloys, and Kinetics
Sang Won Kwak, Chan-Joo Lee, Sung Kyo Kim, Hyeon-Cheol Kim, Jung-Hong Ha
Materials.2019; 12(9): 1506. CrossRef - Gripping the Gripped: Removal of Foreign Bodies from Root Canal System
Shweta Jain, Sachin Jain, Shikha Jain, Sophia Thakur
Dental Research and Management.2019; : 13. CrossRef - Mechanical Properties of Orifice Preflaring Nickel-titanium Rotary Instrument Heat Treated Using T-Wire Technology
Maamoun Ataya, Jung-Hong Ha, Sang Won Kwak, Ibrahim H. Abu-Tahun, Rashid El Abed, Hyeon-Cheol Kim
Journal of Endodontics.2018; 44(12): 1867. CrossRef - How biomechanics can affect the endodontic treated teeth and their restorative procedures?
Carlos José Soares, Monise de Paula Rodrigues, André Luis Faria-e-Silva, Paulo Cesar Freitas Santos-Filho, Crisnicaw Veríssimo, Hyeon-Cheol Kim, Antheunis Versluis
Brazilian Oral Research.2018;[Epub] CrossRef - Evaluation of selected mechanical properties of NiTi rotary glide path files manufactured from controlled memory wires
Miki NISHIJO, Arata EBIHARA, Daisuke TOKITA, Hisashi DOI, Takao HANAWA, Takashi OKIJI
Dental Materials Journal.2018; 37(4): 549. CrossRef - Nickel–titanium instruments in endodontics: a concise review of the state of the art
Giulio Gavini, Marcelo dos Santos, Celso Luis Caldeira, Manoel Eduardo de Lima Machado, Laila Gonzales Freire, Elaine Faga Iglecias, Ove Andrea Peters, George Táccio de Miranda Candeiro
Brazilian Oral Research.2018;[Epub] CrossRef - Dynamic Torque and Vertical Force Analysis during Nickel-titanium Rotary Root Canal Preparation with Different Modes of Reciprocal Rotation
Daisuke Tokita, Arata Ebihara, Miki Nishijo, Kana Miyara, Takashi Okiji
Journal of Endodontics.2017; 43(10): 1706. CrossRef
ePub Link
Cite
XML DownloadScrew-in forces during instrumentation by various file systems
Figure 1 Longitudinal geometries of the instruments showing helical angle and pitch length. (a) Mtwo size 25/0.07; (b) Reciproc R25; (c) ProTaper Universal F2; (d) ProTaper Next X2.
Figure 2 A custom-made test device (AEndoS-k, DMJ system, Busan, Korea). Simulated canal, force sensor and engine-driven motor unit are shown in box.
Figure 3 Representative chart of screw-in forces during instrumentation using Reciproc R25. Negative values indicate the screw-in forces and the deepest depth in force with negative value indicates the maximum screw-in forces. Repeating 5 mm downward (black arrow) and 4 mm upward (white arrow) movement, the files approach the working length (16 mm) as the laps of time.
Figure 1
Figure 2
Figure 3
Screw-in forces during instrumentation by various file systems

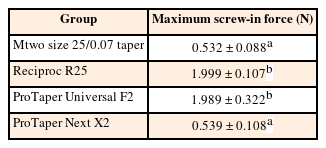

Maximum screw-in forces according to the file systems during instrumentation
