Evaluating the reliability and repeatability of the digital color analysis system for dentistry

Joong-Jae Jeong; Su-Jung Park; Hyun-Gu Cho; Yun-Chan Hwang; Won-Mann Oh; In-Nam Hwang

doi:10.5395/JKACD.2008.33.4.352

Articles

Page Path: HOME > Restor Dent Endod > Volume 33(4); 2008 > Article

Original Article Evaluating the reliability and repeatability of the digital color analysis system for dentistry: Joong-Jae Jeong, Su-Jung Park, Hyun-Gu Cho, Yun-Chan Hwang, Won-Mann Oh, In-Nam Hwang; 2008;33(4):-368.
DOI: https://doi.org/10.5395/JKACD.2008.33.4.352
Published online: July 31, 2008

Department of Conservative Dentistry, School of Dentistry, DSRI, Chonnam National University, Korea.

Corresponding Author: In-Nam Hwang. Department of Conservative Dentistry, School of Dentistry, Chonnam National University 5 Hak-dong, Dong-gu, Gwangju, 501-757, Korea. Tel: 82-62-220-4443, Fax: 82-62-225-8387, hinso@jnu.ac.kr

• Received: April 22, 2008 • Revised: May 26, 2008 • Accepted: May 29, 2008

578 Views
2 Download
1 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

This study was done to evaluate the reliability of the digital color analysis system (ShadeScan, CYNOVAD, Montreal, Canada) for dentistry.

Sixteen tooth models were made by injecting the A2 shade chemical cured resin for temporary crown into the impression acquired from 16 adults. Surfaces of the model teeth were polished with resin polishing cloth. The window of the ShadeScan handpiece was placed on the labial surface of tooth and tooth images were captured, and each tooth shade was analyzed with the ShadeScan software. Captured images were selected in groups, and compared one another.

Two models were selected to evaluate repeatability of ShadeScan, and shade analysis was performed 10 times for each tooth.

And, to ascertain the color difference of same shade code analyzed by ShadeScan, CIE L^*a^*b^*values of shade guide of Gradia Direct (GC, Tokyo, Japan) were measured on the white and black background using the Spectrolino (GretagMacbeth, USA), and Shade map of each shade guide was captured using the ShadeScan.

There were no teeth that were analyzed as A2 shade and unique shade. And shade mapping analyses of the same tooth revealed similar shade and distribution except incisal third.

Color difference (ΔE^*) among the Shade map which analyzed as same shade by ShadeScan were above 3.

Within the limits of this study, digital color analysis instrument for dentistry has relatively high repeatability, but has controversial in accuracy.
Keywords: Tooth color; Digital color; Color analysis; Color repeatability; ShadeScan

Figure 1

Shade Map of the maxillary central incisors.

Figure 2

Shade Map of the maxillary lateral incisors.

Figure 3

Shade Map of the maxillary canines.

Figure 4

Shade Map of the maxillary first premolars.

Figure 5

Shade Map of the maxillary second premolars.

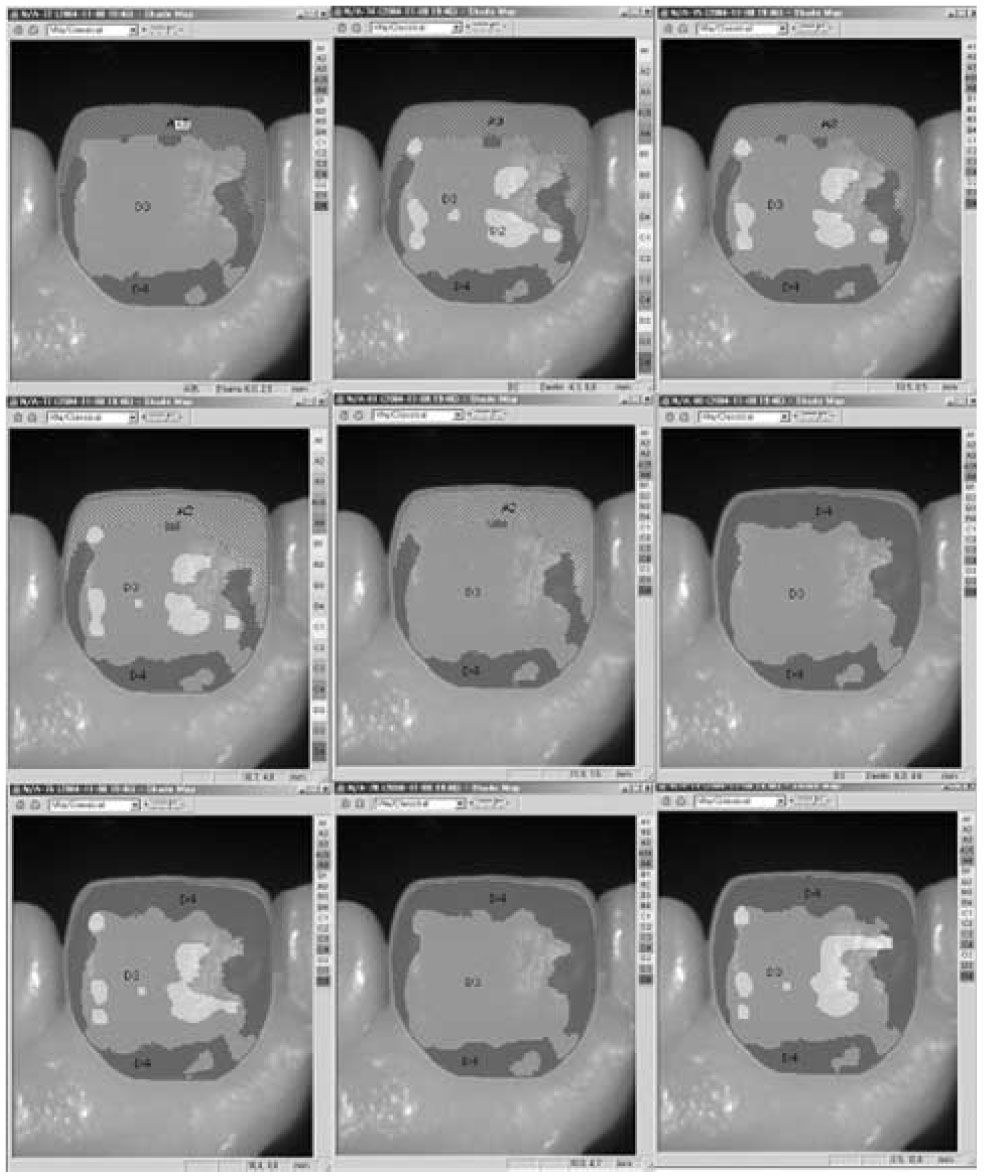

Figure 6

Repeated measurement of a central incisor.

Figure 7

Repeated measurement of a canine.

Figure 8

Shade Map of A1 shade guide on the black background (upper) and white background (below) according to thickness.

Figure 9

Shade Map of A3 shade guide on the black background (upper) and white background (below) according to thickness.

Table 1

Vita shade-guide colors (O'Brien et al.26, 1989)

Table 2

CIE L^*a^*b^* value of shade guides measured on the black background and white background

Table 3

Color difference (ΔE^*) of 3 mm thickness shade guide between measured on the black background and white background

Table 4

Color difference (ΔE^*) among shade guides that analysed as same Vita code

A1 (1W) : 1 mm A1 shade guide analysed on white background

B3 (1B) : 1 mm B3 shade guide analysed on black background

REFERENCES

1. Sproull RC. Color matching in dentistry. Part II: Practical applications of the organization of color. J Prosthet Dent. 1973;29: 556-566.Article PubMed
2. Paravina RD, Power JM, Fay RM. Color comparison of two shade guides. Int J Prosthodont. 2002;15: 73-78.PubMed
3. Hwang IN, Oh WM. Colorimetric Analysis of Extracted Human Teeth and Five Shade Guides. J Korean Acad Conserv Dent. 1997;22: 769-781.
4. Preston JD. Current status of shade selection and color matching. Quintessence Int. 1985;16: 47-58.PubMed
5. Grajower R, Revah A, Sorin S. Reflectance spectra of natural and acrylic resin teeth. J Prosthet Dent. 1976;36: 570-579.Article PubMed
6. Bell AM, Kurzeja R, Gemberg MG. Ceramometal crowns and bridges: focus on failures. Dent Clin North Am. 1985;29: 763-778.PubMed
7. O'Brien WJ, Boenke KM, Groh CL. Coverage errors of two shade guides. Int J Prosthodont. 1991;4: 45-50.PubMed
8. Cernavin I. Effect of chlorine-containing disinfecting compounds on shade guides made of acrylic resin. J Prosthet Dent. 1996;75: 574.PubMed
9. Sykora O. Fabrication of a posterior shade guide for removable partial dentures. J Prosthet Dent. 1983;50: 287-288.Article PubMed
10. Lemire PA, Burk B. Color in dentistry. 1975;Hartford, CT: J.M Ney Co..
11. Grajower R, Revah A, Sorin S. Reflectance spectra of natural and acrylic teeth. J Prosthet Dent. 1976;36: 570-579.PubMed
12. Macentee M, Lakowski R. Instrumental color measurement of vital and extracted teeth. J Oral Rehabil. 1981;8: 203-208.PubMed
13. Goodkind RJ, Schwabacher WB. Use of a fiber-optic colorimeter for in vivo color measurements of 2830 anterior teeth. J Prosthet Dent. 1987;58: 535-542.Article PubMed
14. Park HK, Jeong JH. A Study on the Color of Korean Natural Teeth. J Korean Acad Prosthodont. 1988;26: 185-195.
15. Cho KM, Shin DH. Color Analysis of the Natural Teeth with a Modified Intraoral Spectrophotometer. J Korean Acad Conserv Dent. 1998;23: 223-235.
16. Freedman G. Communicating color. Dent Today. 2001;20: 78-80.
17. Chu SJ, Tarnow DP. Digital shade analysis and verification: A case report and discussion. Pract Proced Aesthet Dent. 2001;13: 129-136.PubMed
18. Chu SJ. Precision shade technology: Contemporary strategies in shade selection. Pract Proced Aesthet Dent. 2002;14: 79-83.PubMed
19. Paravina RD, Powers JM. Esthetic color training in dentistry. 2004;St. Louis, Missouri: Mosby Inc.; 165-174.
20. Clark EB. An analysis of tooth color. J Am Dent Assoc. 1931;18: 2093-2103.Article
21. Clark EB. Tooth color selection. J Am Dent Assoc. 1933;20: 1065-1073.
22. Miller LL. Shade matching. J Esthet Dent. 1993;5: 143-153.Article PubMed
23. Miller LL. Organizing color in dentistry. J Am Dent Assoc. 1987 12;Spec No: 26E-40E.Article PubMed
24. Hayashi T. Medical color standard. V. Tooth crown. 1967;Tokyo: Japan Color Research Institute.
25. Goodkind RJ, Loupe MJ. Teaching of color in predoctoral and postdoctoral dental education in 1988. J Prosthet Dent. 1992;67: 713-717.Article PubMed
26. O'Brien WJ, Groh CL, Boenke KM. A one-dimensional color order system for dental shade guides. Dent Mater. 1989;5: 371-374.Article PubMed
27. Seghi RR, Hewlett ER, Kim J. Visual and instrumental colorimetric assessments of small color differences on translucent dental porcelain. J Dent Res. 1989;68: 1760-1764.Article PubMed PDF
28. Gross MD, Moser JB. A colorimetric study of coffee and tee staining of four composite resins. J Oral Rehabil. 1977;4: 311-322.PubMed
29. Hwang IN, Lee KW. Translucency of Light Cured Composite Resins Depends on Thickness & its Influence on Color of Restorations. J Korean Acad Conserv Dent. 1999;24: 604-613.
30. Johnston WM, Kao EC. Assessment of appearance match by visual observation and clinical colorimeter. J Dent Res. 1989;68: 819-822.PubMed
31. Goodkind RJ, Keenan KM, Schwabacher WB. A comparison of Chromascan and spectrophotometric color measurement of 100 natural teeth. J Prosthet Dent. 1985;53: 105-109.PubMed
32. Schwabacher WB, Goodkind RJ. Three-dimensional color coordinates of natural teeth compared with three shade guide. J Prosthet Dent. 1990;64: 425-431.PubMed
33. Yeh CL, Powers JM, Miyagawa Y. Color of selected shades of composites by reflection spectrophotometry. J Dent Res. 1982;61: 1176-1179.Article PubMed PDF
34. Robertson AR. Colorimetry. Rep Prog Phys. 1978;41: 471-510.Article
35. Thornton WA. How strong metamerism disturbs color spaces. Color Res Appl. 1998;23: 402-407.Article
36. Park EJ. The basis of color molding. 1996;2nd ed. Seoul: Mijinsa; 56-194.
37. Park DY. Practical Chromatics. 1992;Revised ed. Seoul: Bando publisher; 99-120.
38. The Korean Industrial Standard. KS A 0065.

Tables & Figures

Figure 1

Shade Map of the maxillary central incisors.

Figure 2

Shade Map of the maxillary lateral incisors.

Figure 3

Shade Map of the maxillary canines.

Figure 4

Shade Map of the maxillary first premolars.

Figure 5

Shade Map of the maxillary second premolars.

Figure 6

Repeated measurement of a central incisor.

Figure 7

Repeated measurement of a canine.

Figure 8

Shade Map of A1 shade guide on the black background (upper) and white background (below) according to thickness.

Figure 9

Shade Map of A3 shade guide on the black background (upper) and white background (below) according to thickness.

Table 1

Vita shade-guide colors (O'Brien et al.26, 1989)

Table 2

CIE L^*a^*b^* value of shade guides measured on the black background and white background

Table 3

Color difference (ΔE^*) of 3 mm thickness shade guide between measured on the black background and white background

Table 4

Color difference (ΔE^*) among shade guides that analysed as same Vita code

A1 (1W) : 1 mm A1 shade guide analysed on white background

B3 (1B) : 1 mm B3 shade guide analysed on black background

REFERENCES

1. Sproull RC. Color matching in dentistry. Part II: Practical applications of the organization of color. J Prosthet Dent. 1973;29: 556-566.Article PubMed
2. Paravina RD, Power JM, Fay RM. Color comparison of two shade guides. Int J Prosthodont. 2002;15: 73-78.PubMed
3. Hwang IN, Oh WM. Colorimetric Analysis of Extracted Human Teeth and Five Shade Guides. J Korean Acad Conserv Dent. 1997;22: 769-781.
4. Preston JD. Current status of shade selection and color matching. Quintessence Int. 1985;16: 47-58.PubMed
5. Grajower R, Revah A, Sorin S. Reflectance spectra of natural and acrylic resin teeth. J Prosthet Dent. 1976;36: 570-579.Article PubMed
6. Bell AM, Kurzeja R, Gemberg MG. Ceramometal crowns and bridges: focus on failures. Dent Clin North Am. 1985;29: 763-778.PubMed
7. O'Brien WJ, Boenke KM, Groh CL. Coverage errors of two shade guides. Int J Prosthodont. 1991;4: 45-50.PubMed
8. Cernavin I. Effect of chlorine-containing disinfecting compounds on shade guides made of acrylic resin. J Prosthet Dent. 1996;75: 574.PubMed
9. Sykora O. Fabrication of a posterior shade guide for removable partial dentures. J Prosthet Dent. 1983;50: 287-288.Article PubMed
10. Lemire PA, Burk B. Color in dentistry. 1975;Hartford, CT: J.M Ney Co..
11. Grajower R, Revah A, Sorin S. Reflectance spectra of natural and acrylic teeth. J Prosthet Dent. 1976;36: 570-579.PubMed
12. Macentee M, Lakowski R. Instrumental color measurement of vital and extracted teeth. J Oral Rehabil. 1981;8: 203-208.PubMed
13. Goodkind RJ, Schwabacher WB. Use of a fiber-optic colorimeter for in vivo color measurements of 2830 anterior teeth. J Prosthet Dent. 1987;58: 535-542.Article PubMed
14. Park HK, Jeong JH. A Study on the Color of Korean Natural Teeth. J Korean Acad Prosthodont. 1988;26: 185-195.
15. Cho KM, Shin DH. Color Analysis of the Natural Teeth with a Modified Intraoral Spectrophotometer. J Korean Acad Conserv Dent. 1998;23: 223-235.
16. Freedman G. Communicating color. Dent Today. 2001;20: 78-80.
17. Chu SJ, Tarnow DP. Digital shade analysis and verification: A case report and discussion. Pract Proced Aesthet Dent. 2001;13: 129-136.PubMed
18. Chu SJ. Precision shade technology: Contemporary strategies in shade selection. Pract Proced Aesthet Dent. 2002;14: 79-83.PubMed
19. Paravina RD, Powers JM. Esthetic color training in dentistry. 2004;St. Louis, Missouri: Mosby Inc.; 165-174.
20. Clark EB. An analysis of tooth color. J Am Dent Assoc. 1931;18: 2093-2103.Article
21. Clark EB. Tooth color selection. J Am Dent Assoc. 1933;20: 1065-1073.
22. Miller LL. Shade matching. J Esthet Dent. 1993;5: 143-153.Article PubMed
23. Miller LL. Organizing color in dentistry. J Am Dent Assoc. 1987 12;Spec No: 26E-40E.Article PubMed
24. Hayashi T. Medical color standard. V. Tooth crown. 1967;Tokyo: Japan Color Research Institute.
25. Goodkind RJ, Loupe MJ. Teaching of color in predoctoral and postdoctoral dental education in 1988. J Prosthet Dent. 1992;67: 713-717.Article PubMed
26. O'Brien WJ, Groh CL, Boenke KM. A one-dimensional color order system for dental shade guides. Dent Mater. 1989;5: 371-374.Article PubMed
27. Seghi RR, Hewlett ER, Kim J. Visual and instrumental colorimetric assessments of small color differences on translucent dental porcelain. J Dent Res. 1989;68: 1760-1764.Article PubMed PDF
28. Gross MD, Moser JB. A colorimetric study of coffee and tee staining of four composite resins. J Oral Rehabil. 1977;4: 311-322.PubMed
29. Hwang IN, Lee KW. Translucency of Light Cured Composite Resins Depends on Thickness & its Influence on Color of Restorations. J Korean Acad Conserv Dent. 1999;24: 604-613.
30. Johnston WM, Kao EC. Assessment of appearance match by visual observation and clinical colorimeter. J Dent Res. 1989;68: 819-822.PubMed
31. Goodkind RJ, Keenan KM, Schwabacher WB. A comparison of Chromascan and spectrophotometric color measurement of 100 natural teeth. J Prosthet Dent. 1985;53: 105-109.PubMed
32. Schwabacher WB, Goodkind RJ. Three-dimensional color coordinates of natural teeth compared with three shade guide. J Prosthet Dent. 1990;64: 425-431.PubMed
33. Yeh CL, Powers JM, Miyagawa Y. Color of selected shades of composites by reflection spectrophotometry. J Dent Res. 1982;61: 1176-1179.Article PubMed PDF
34. Robertson AR. Colorimetry. Rep Prog Phys. 1978;41: 471-510.Article
35. Thornton WA. How strong metamerism disturbs color spaces. Color Res Appl. 1998;23: 402-407.Article
36. Park EJ. The basis of color molding. 1996;2nd ed. Seoul: Mijinsa; 56-194.
37. Park DY. Practical Chromatics. 1992;Revised ed. Seoul: Bando publisher; 99-120.
38. The Korean Industrial Standard. KS A 0065.

Citations

Citations to this article as recorded by

Development of polarization dental imaging modality and evaluation of its clinical feasibility
Eunji Kim, Taeyoon Son, Yoon Lee, Byungjo Jung
Journal of Dentistry.2012; 40: e18. CrossRef

CanvasJS.com

ePub Link

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:

RIS — For EndNote, ProCite, RefWorks, and most other reference management software
BibTeX — For JabRef, BibDesk, and other BibTeX-specific software

Include:

Citation for the content below
Citation and abstract for the content below

Evaluating the reliability and repeatability of the digital color analysis system for dentistry

J Korean Acad Conserv Dent. 2008;33(4):352-368. Published online July 31, 2008

DOI: https://doi.org/10.5395/JKACD.2008.33.4.352

XML Download

Figure

Evaluating the reliability and repeatability of the digital color analysis system for dentistry

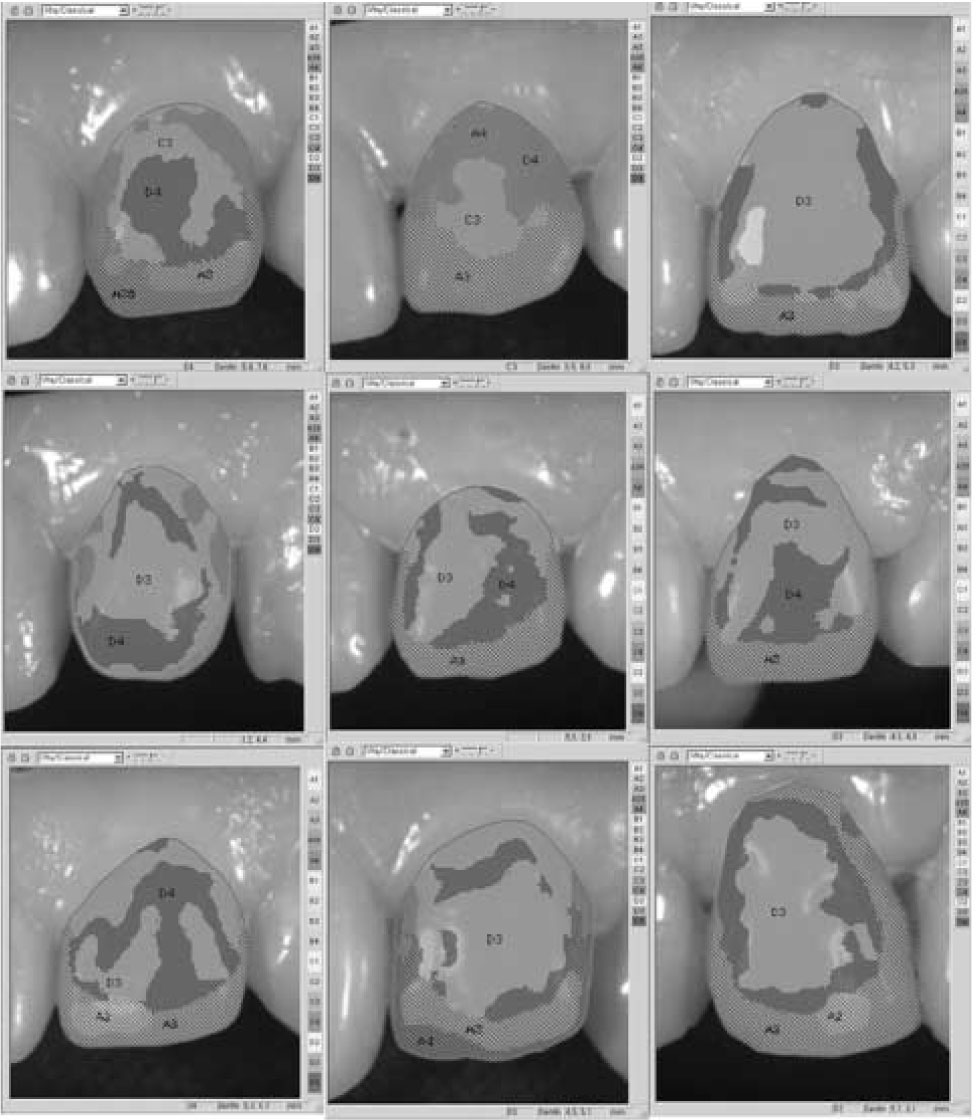

Figure 1 Shade Map of the maxillary central incisors.

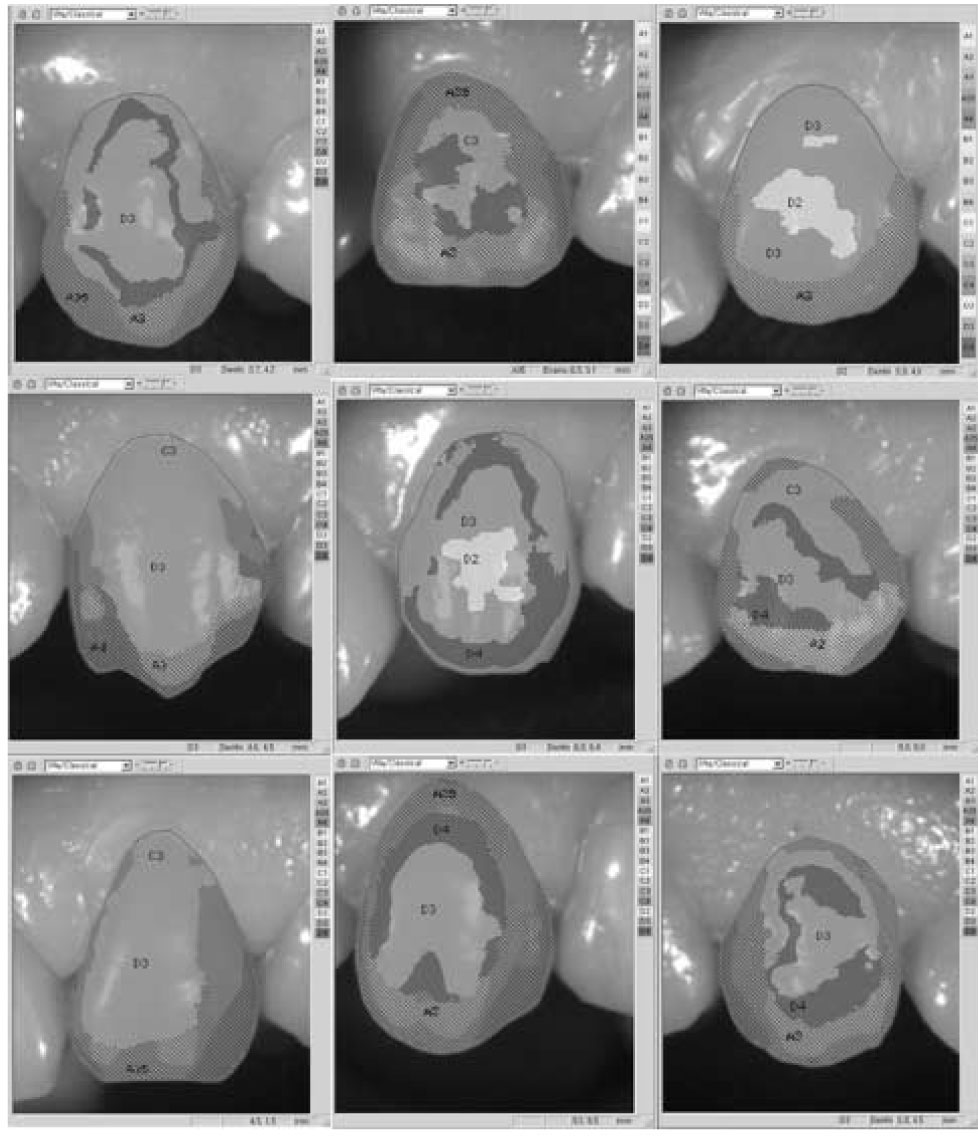

Figure 2 Shade Map of the maxillary lateral incisors.

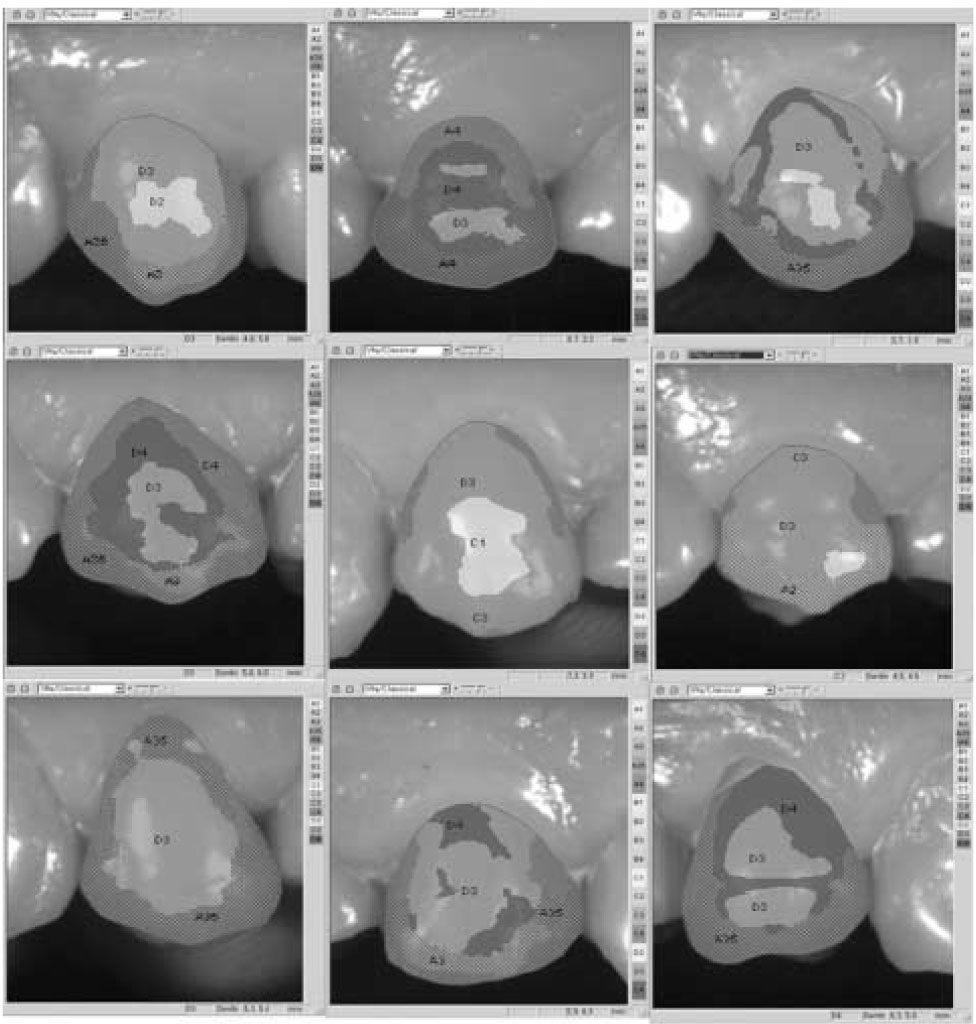

Figure 3 Shade Map of the maxillary canines.

Figure 4 Shade Map of the maxillary first premolars.

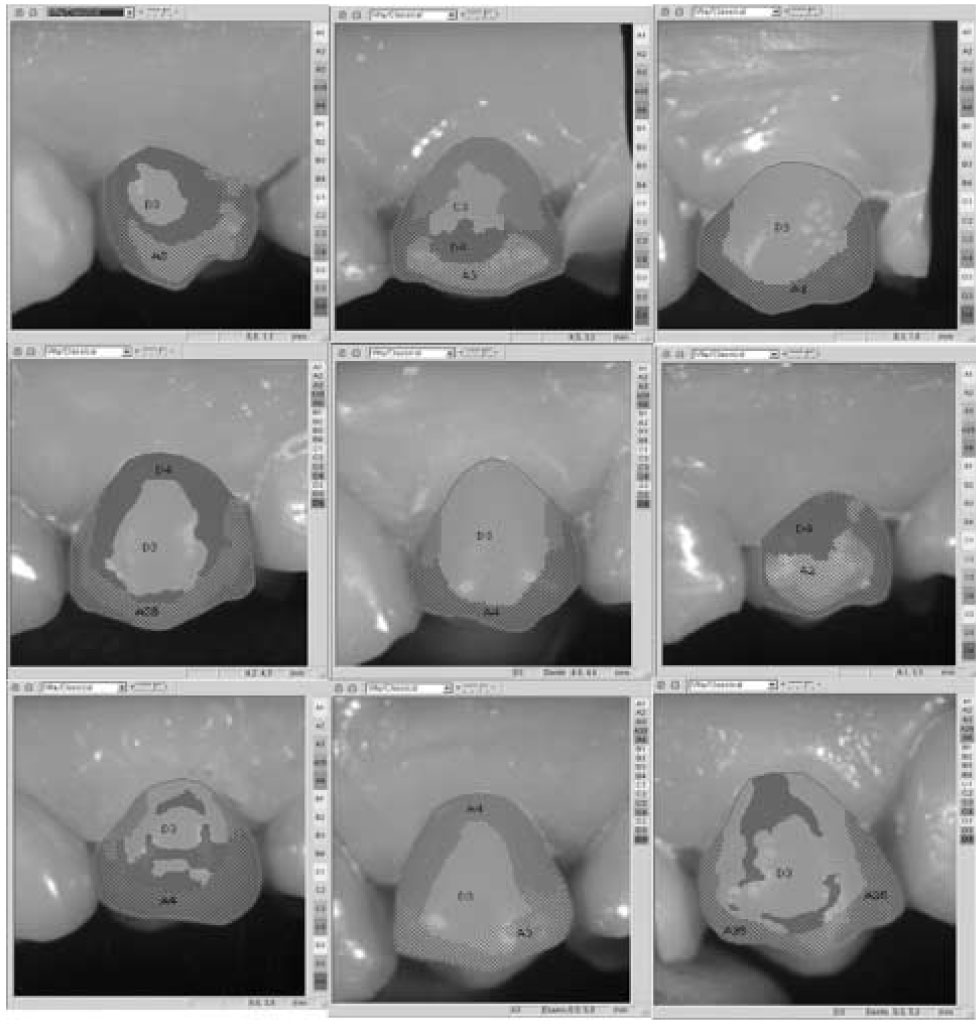

Figure 5 Shade Map of the maxillary second premolars.

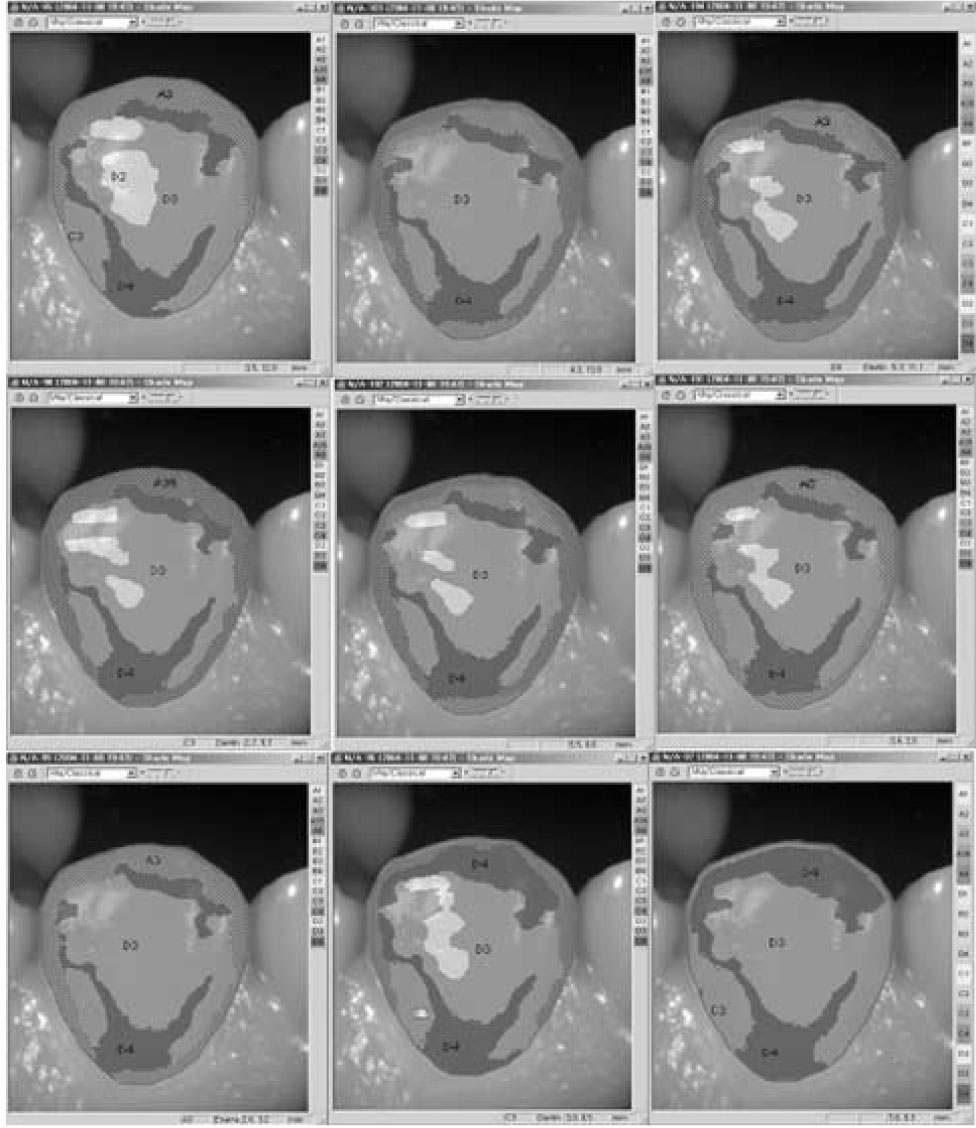

Figure 6 Repeated measurement of a central incisor.

Figure 7 Repeated measurement of a canine.

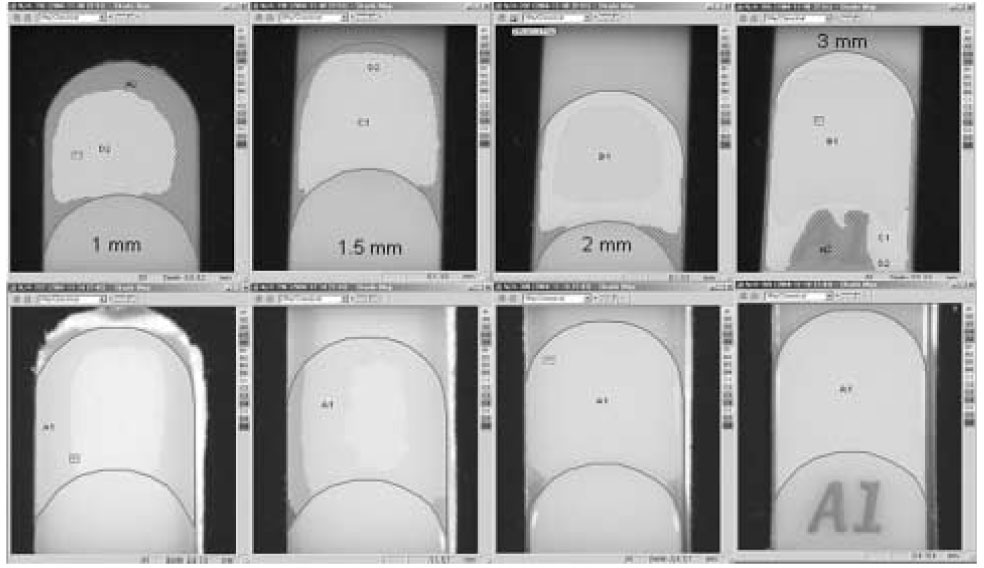

Figure 8 Shade Map of A1 shade guide on the black background (upper) and white background (below) according to thickness.

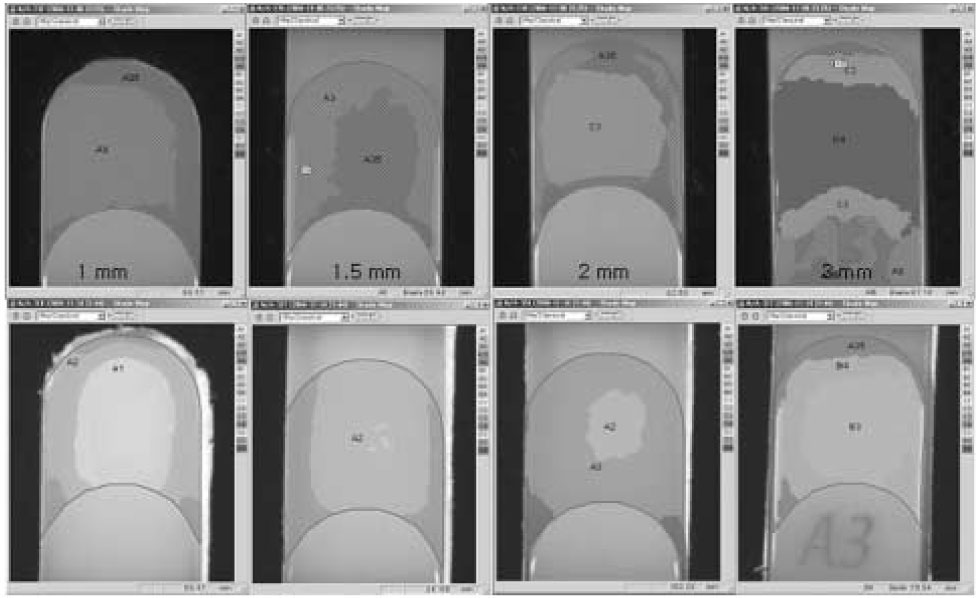

Figure 9 Shade Map of A3 shade guide on the black background (upper) and white background (below) according to thickness.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Evaluating the reliability and repeatability of the digital color analysis system for dentistry

Table 1

Vita shade-guide colors (O'Brien et al.26, 1989)

Table 2

CIE L^*a^*b^* value of shade guides measured on the black background and white background

Table 3

Color difference (ΔE^*) of 3 mm thickness shade guide between measured on the black background and white background

Table 4

Color difference (ΔE^*) among shade guides that analysed as same Vita code

A1 (1W) : 1 mm A1 shade guide analysed on white background

B3 (1B) : 1 mm B3 shade guide analysed on black background

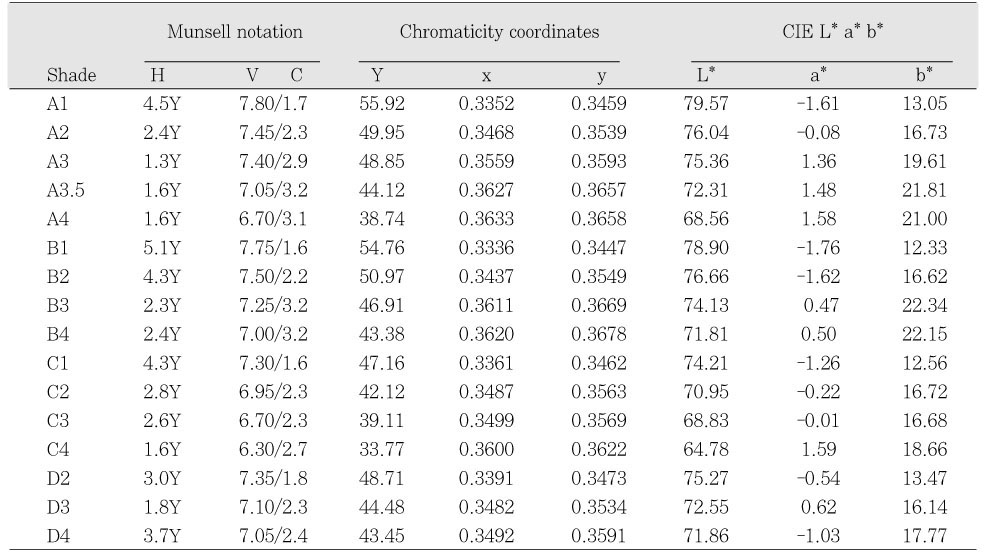

Table 1 Vita shade-guide colors (O'Brien et al.26, 1989)
