Original Article Development of chewing simulator
Sung-Ho Park, Il-Young Jung, Kwon-Yong Lee#
2003;28(1):-40.
DOI: https://doi.org/10.5395/JKACD.2003.28.1.034
Published online: January 31, 2003

Department of conservative Dentistry, Yonsei University, Korea.

#Department of mechanical engineering, Sejong University, Korea.

Corresponding author (sunghopark@yumc.yonsei.ac.kr)

Copyright © 2003 Korean Academy of Conservative Dentistry

  • 289 Views
  • 2 Download
  • 1 Crossref
prev next
  • Chewing simulator, which can partly mimic the motion of chewing motion of human, has been successfully developed. The purpose of its development was to make a new machine which can anticipate the clinical results of restoration in the human teeth more accurately in vitro condition It is composed of 4 major parts; chewing part, motor part, water bath, controlling part. The controlling part control the chewing force, frequency, the temperature and running time of water. Additionally, the actual chewing force and remaining time is shown in the monitor of controlling part. At present, the chewing cycle is composed depending on the pre-published data of foreign people. Long term clinical data should be additionally collected for the simulator to mimic the clinical results more accurately.

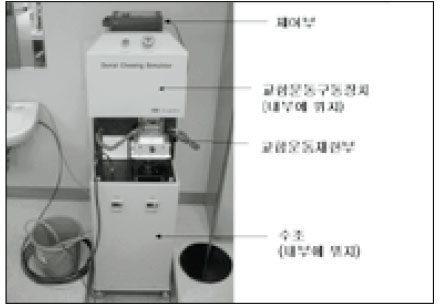

Fig. 1
Chewing simulator, front view

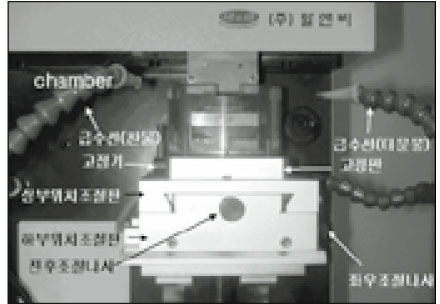

Fig. 2
Chewing simulator, front view of chamber part and position control table

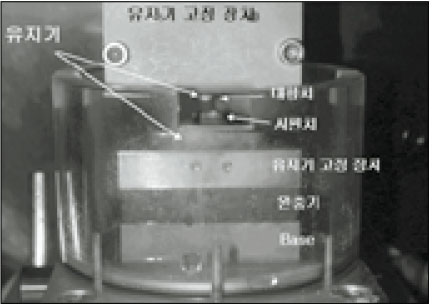

Fig. 3
Chewing simulator, front view of chamber part

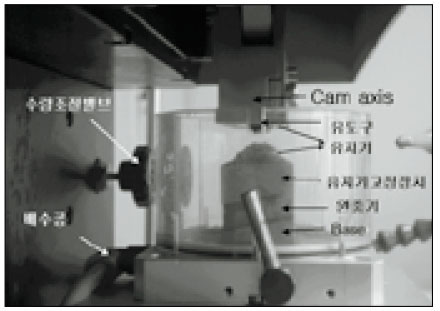

Fig. 4
Chewing simulator, side view of chamber part

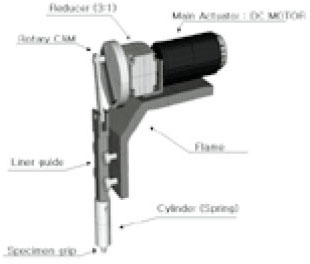

Fig. 5
Motor part of chewing simulator

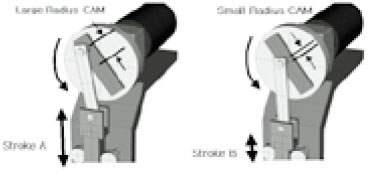

Fig. 6
Movement of CAM

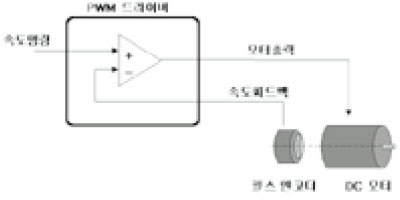

Fig. 7
Diagram of PWM driver movement

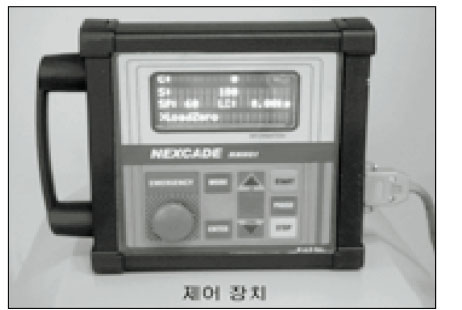

Fig. 8
Controlling part
